Restored BOSCH Distributors For Sale

BOSCH DISTRIBUTOR

Vintage Werks endeavors to maintain an inventory of early Bosch cast iron distributors of the kind used on Volkswagen and Porsche vehicles from the 1950's and early 1960's.  Through our research we have compiled performance specifications and information concerning vehicle models and chassis numbers for which each distributor was used.  We can provide assistance in selecting the correct distributor for your vehicle whether it be a concors restoration, daily driver or basket case project.  Each of our distributors is curved using a Sun model distributor tester to assure its performance characteristics are within factory specifications. A graph is provided to you at the time of purchase which shows the curve for the specific distributor shipped to you. Our distributors are sold complete with cap, rotor, points and condenser installed so they are ready to bolt in your engine and drive.  Unless otherwise indicated no core exchange is required.  They come standard with black distributor caps and are priced accordingly. For no additional charge, you may have your choice of a red or brown cap.

About the Bosch builder's badges: these are of variable quality. While we do our best to locate core distributors with presentable badges, 50 years of use and abuse often has taken its toll leaving the badges marred, faded or discolored. While we can make some improvement in their appearance, we cannot remove all evidence of damage. If this is of particular concern to you as for a concours restoration, please let us know.

About Bosch date codes: Bosch stamped each of their distributors with a date code indicating the month and year of manufacture. We identify each of our restored distributors by its date code allowing you to select a distributor that matches or nearly matches the manufacture date of your air-cooled car.  Contact us for a list of available manufacture dates for any of the distributor models shown below.

Warrantee: We stand behind our work.  If within 90 days of purchase you are dissatisfied with your distributor, you may return it for refund, exchange or repair. You will not be charged for labor or parts to fix any defect of workmanship on our part. You must remember, these distributors are on the order of 50 years old, and while they have survived and been rebuilt, they are not new, so we cannot guarantee their performance beyond what we can reasonably control.

Pricing: Inventory is constantly changing, as are the core prices, making it impossible to post the current prices being charged for the distributors above. Sadly as distributor core becomes harder to find, and the prices for that core become more expensive, it has necessitated a passing along of those price increases to the customer. Vintage Werks ad are posted on THE SAMBA website, along with prices of distributors currently available.

If you have a distributor core that can be rebuilt, we charge a minimum labor rate of $175 labor plus parts (usually totaling $70).

There will be a standard shipping charge of $15.00 applied for up to two items shipped to domestic addresses. If shipping outside the United States, please contact us for shipping costs.  Payment by certified check or money order is accepted. PAYPAL is also accepted, however there will be a 3% surcharge added to your order to cover the transaction fees associated with that service.

Following distributors maybe available. Please contact us for a list of available date codes.

For PORSCHE Engines:

For VW Engines:

BOSCH Distributor Inventory

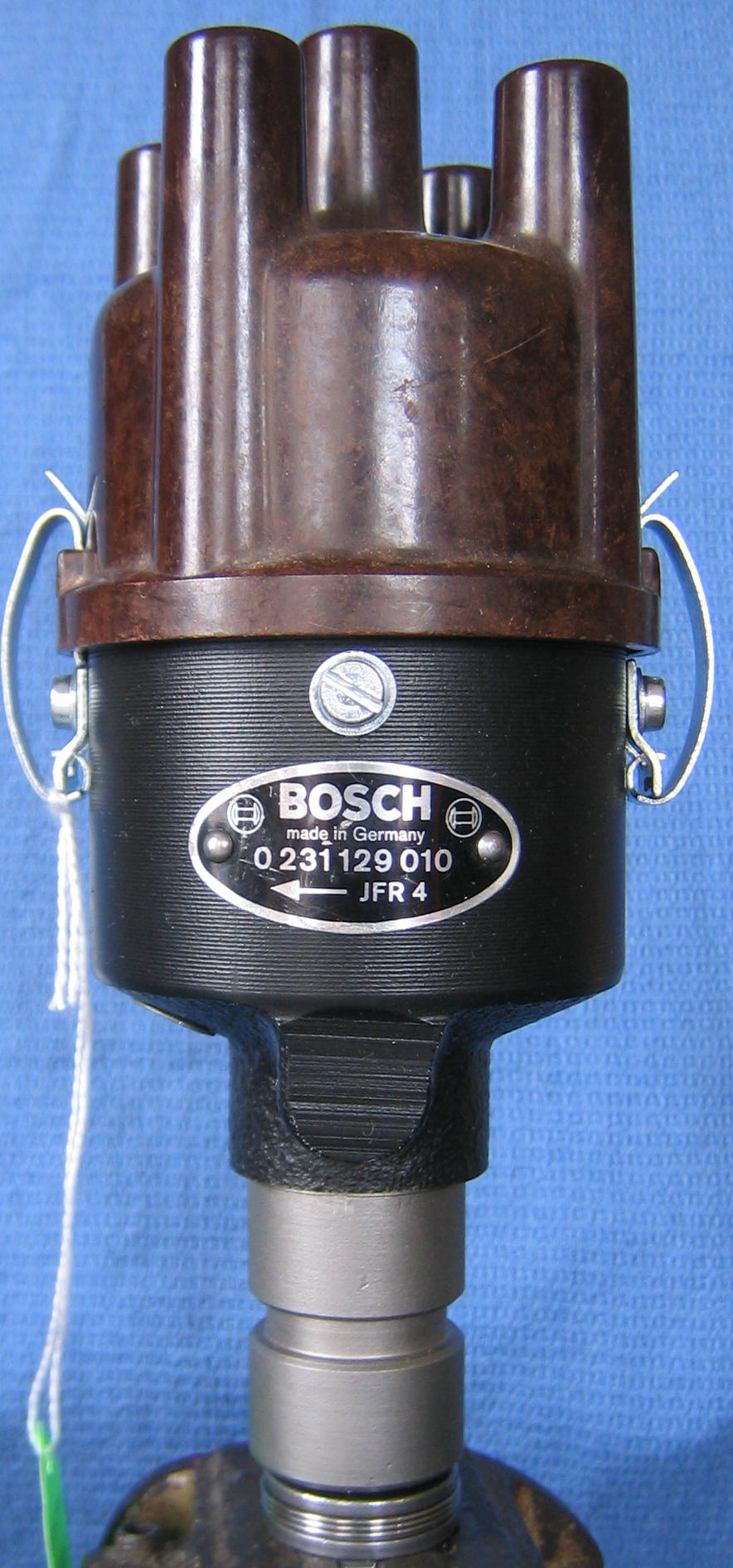

BOSCH Distributor 0 231 129 010

The 010, famous as a period performance upgrade, was actually a Bosch factory replacement for the VJR 4 BR 25, a distributor introduced in May, 1959 for the bastard 40hp engine for the 1959-1960 transporter. The unit, a mechanical advance distributor, has the same advance progression as its predecessor, providing approximately 10 degrees advance at 1400 rpm as measured at the distributor, 20 degrees at 2800 rpm at the crankshaft.



019 Distributor

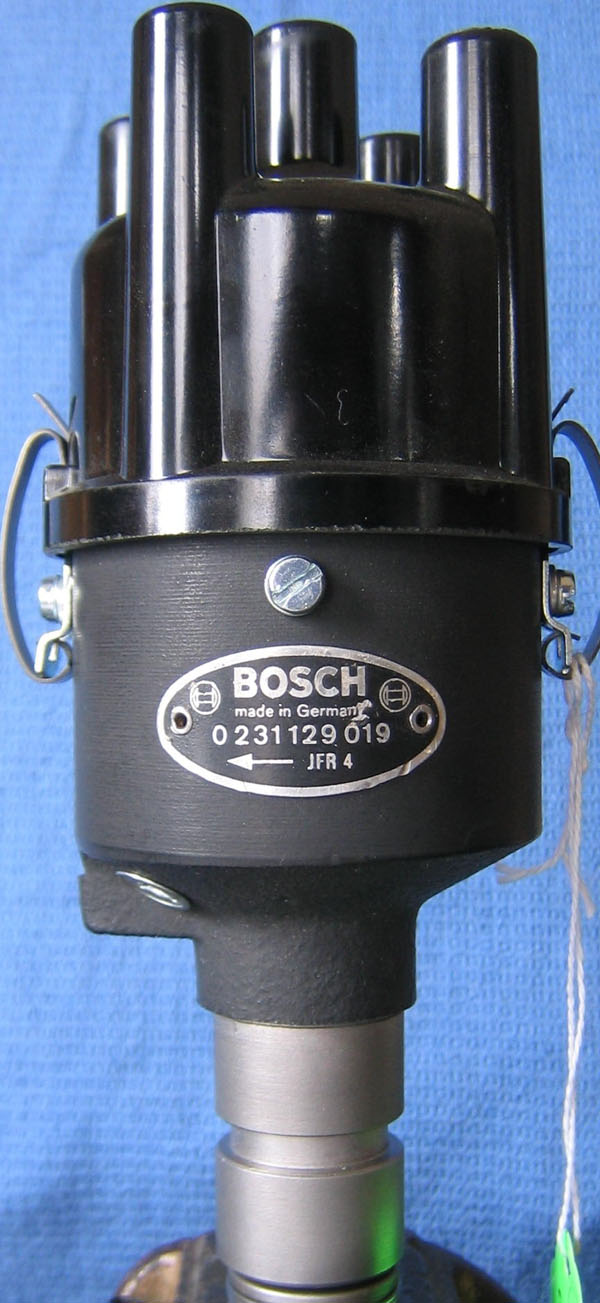

BOSCH Distributor 0 231 129 019

The 019, also known as a performance upgrade like the 010, was likewise a Bosch factory replacement for the VJ 4 BR 8, the distributor used on 36 hp powered transporters from July 1954 to May 1959. The 019 is a mechanical advance distributor and shares the same advance curve with its predecessor, providing approximately 8.5 degrees advance at 1600 rpm measured at the distributor, 17 degrees at 3200 rpm at the crankshaft.

019 Distributor

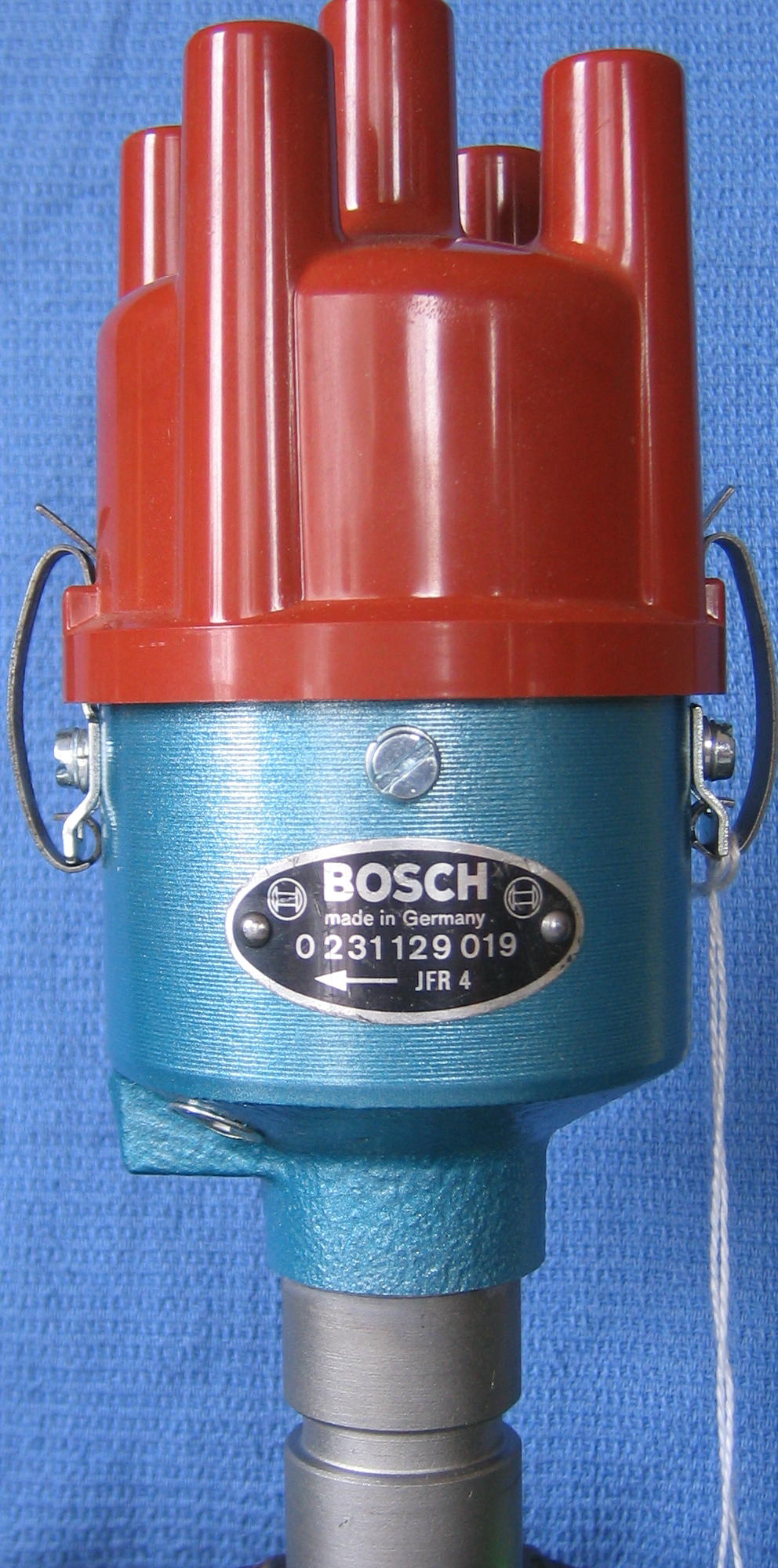

BOSCH Distributor 0 231 129 019 Screamer

  The metallic blue verstion of the 019 was sold in a kit with blue coil and special plug wires as a performance upgrade known as a Screamer Kit.  It retained the same advance curve as the standard version of the 019 shown above.

022 Distributor

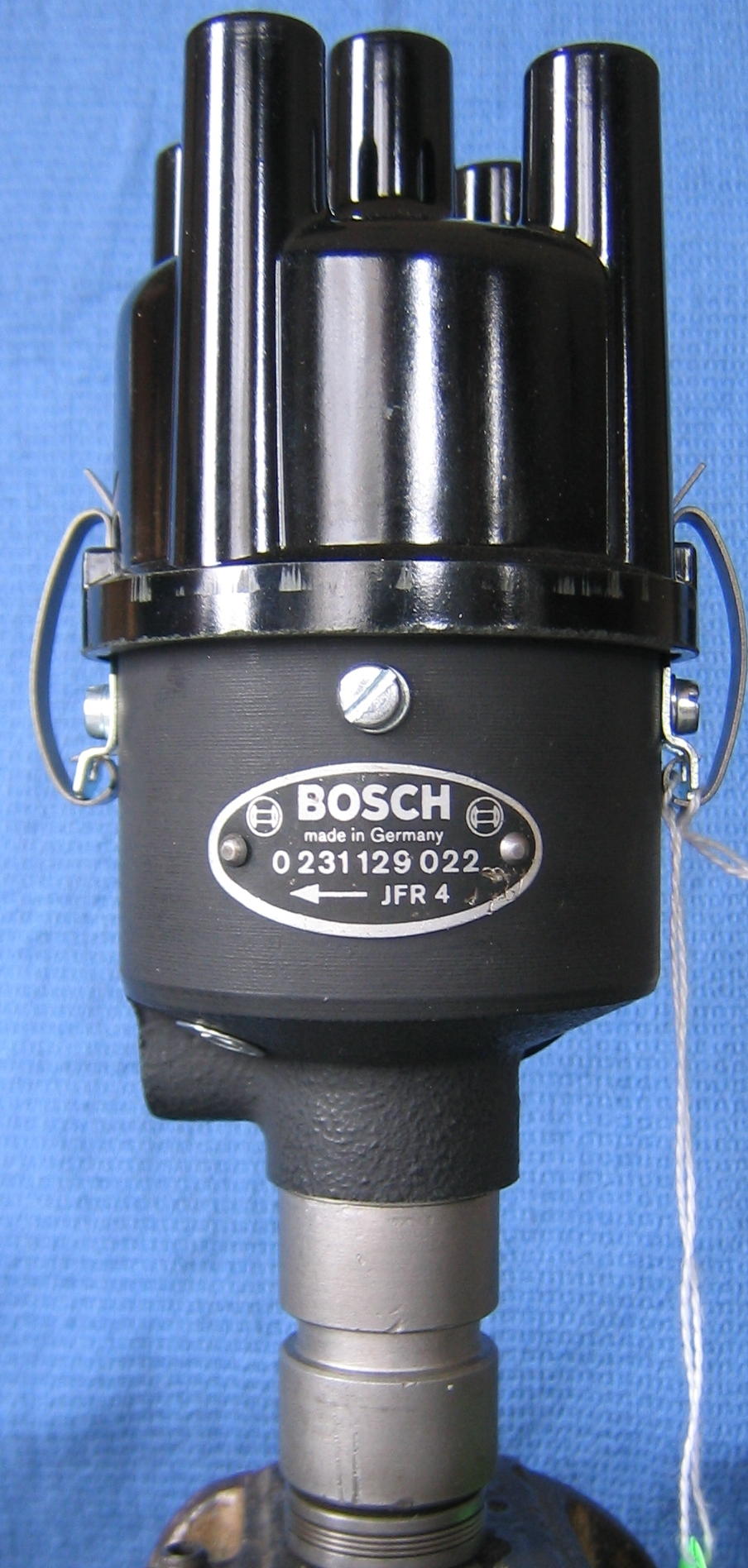

BOSCH Distributor 0 231 129 022

   The 022 was introduced in November 1963 as a mechanical advance replacement for the VJ/VJR 4 BR 18, for the Porsche 356C and 356SC marques and continued in use through the 1967 model Porsche 912 cars.  The distributor maintained the same advance progression as its predecessor with approximately 15 degrees advance at about 1500 rpm as measured at the distributor, 30 degrees at 3000 rpm at the crankshaft.

031 Distributor

BOSCH Distributor 0 231 129 031

   The 031 was introduced in November 1963 as a mechanical advance replacement for the VJ/VJR 4 BR 18, for the Porsche 356C and 356SC marques and continued in use through the 1967 model Porsche 912 cars.  The distributor maintained the same advance progression as its predecessor with approximately 15 degrees advance at about 1500 rpm as measured at the distributor, 30 degrees at 3000 rpm at the crankshaft.

4 BR 8 Distributor

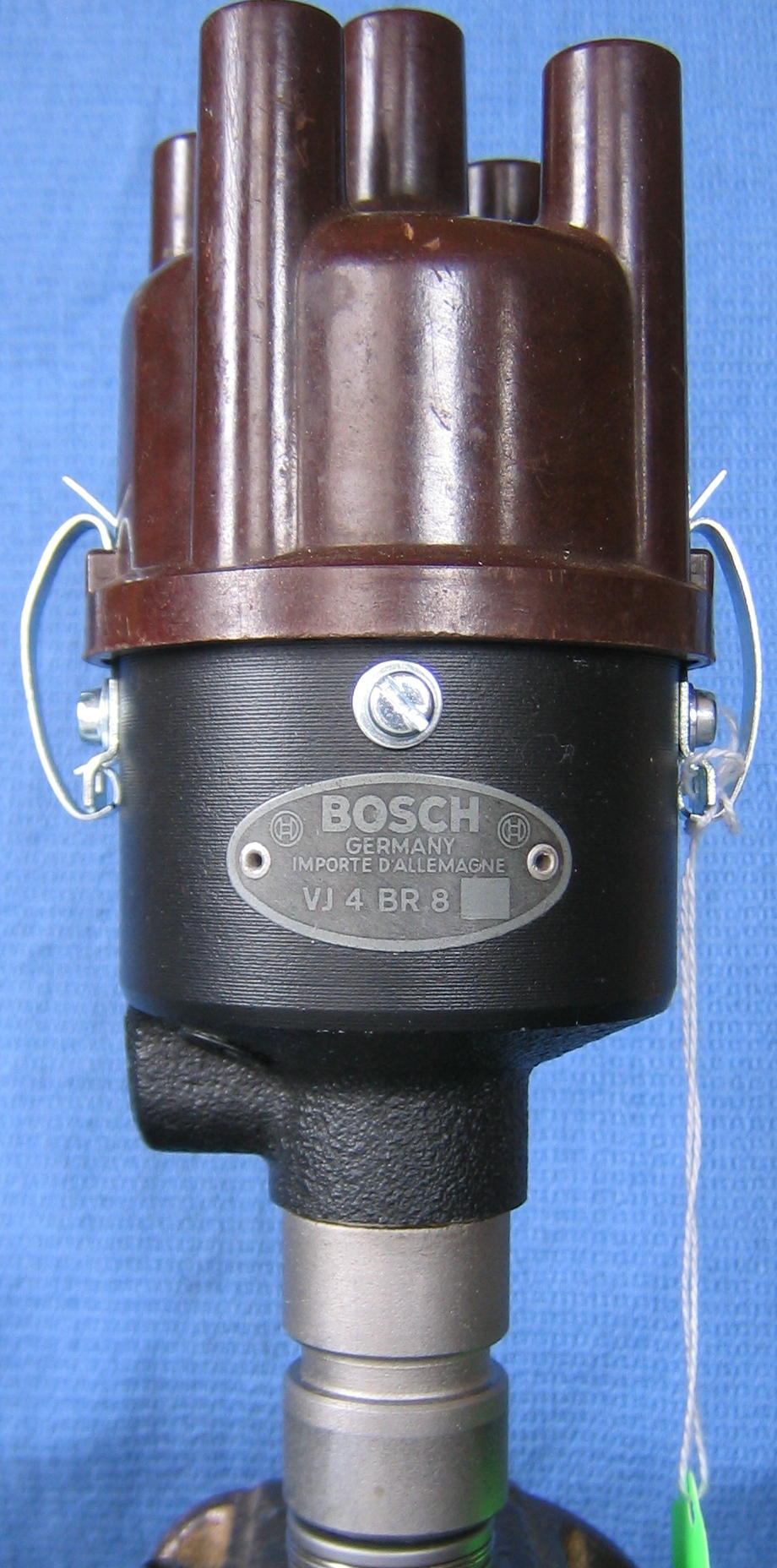

BOSCH Distributor VJ/VJR 4 BR 8

The VJ/VJR 4 BR 8 is the mechanical advance distributor introduced in August 1954 for the VW transporter equipped with the revised 36 hp engine with 6.6:1 compression beginning with chassis No. 20-095 422 and continuing in use through May 1959 with chassis No. 20-469 447.  The unit, a mechanical advance distributor, provides approximately 8.5 degrees advance at 1600 rpm as measured at the distributor, 17 degrees at 3200 rpm at the crankshaft.

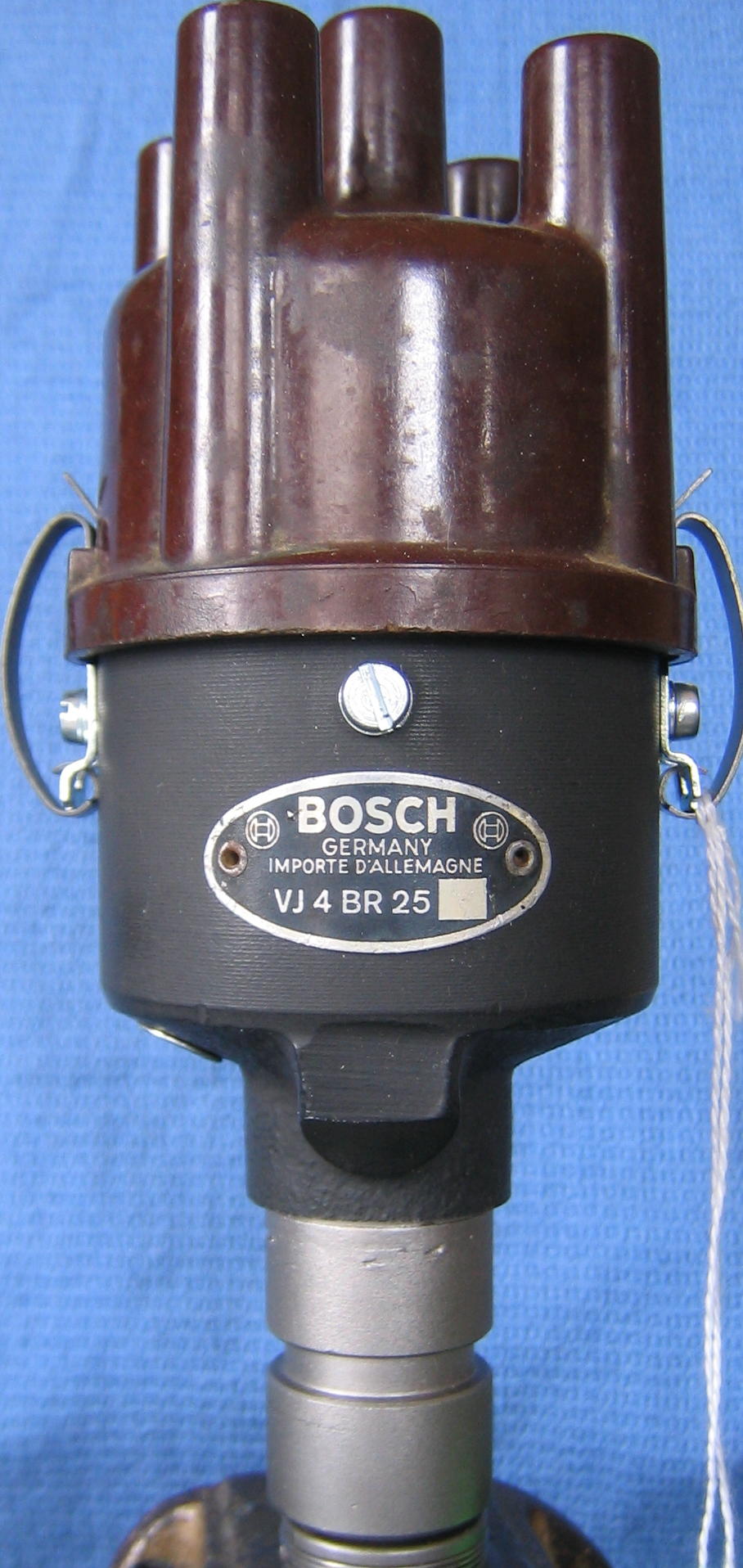

4 BR 25

BOSCH Distributor VJ/VJR 4 BR 25

The VJR 4 BR 25 was introduced in May 1959 for the experimental bastard 40hp engine used on the VW transporter for the 1960 model year beginning with chassis No. 20-469 448.  The unit, strictly mechanical advance, provided a somewhat quicker advance circuit and greater total advance than the BR 8 which it replaced yielding approximately 10 degrees advance at 1400 rpm as measured at the distributor, 20 degrees at 2800 rpm at the crankshaft.

VE4BRS 383

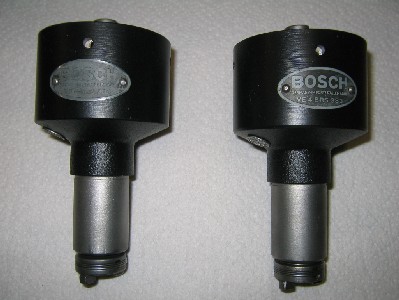

BOSCH Distributor VE 4 BRS 383

The VE 4 BRS 383 was brought into use on the Volkswagen beetle approximately early 1949, replacing an even earlier model, the VEK 4 BS 343.  It continued in use through production of 25hp equipped beetles ending with chassis No. 1-0 575 414 on December 21, 1953.  Likewise, VW placed it on early transporter models again through 25hp production ending with chassis No. 20-069 408 on the same date. Porsche also used the 383 on early 356 pre-A models through 1955 and it was used on industrial engines from both manufacturers during the same peroid. The unit relies on mechanical advance only providing approximately 15 degrees total advance at 1500 rpm as measured at the distributor, 30 degrees at 3000 rpm at the crankshaft.

BR 9 Distributor

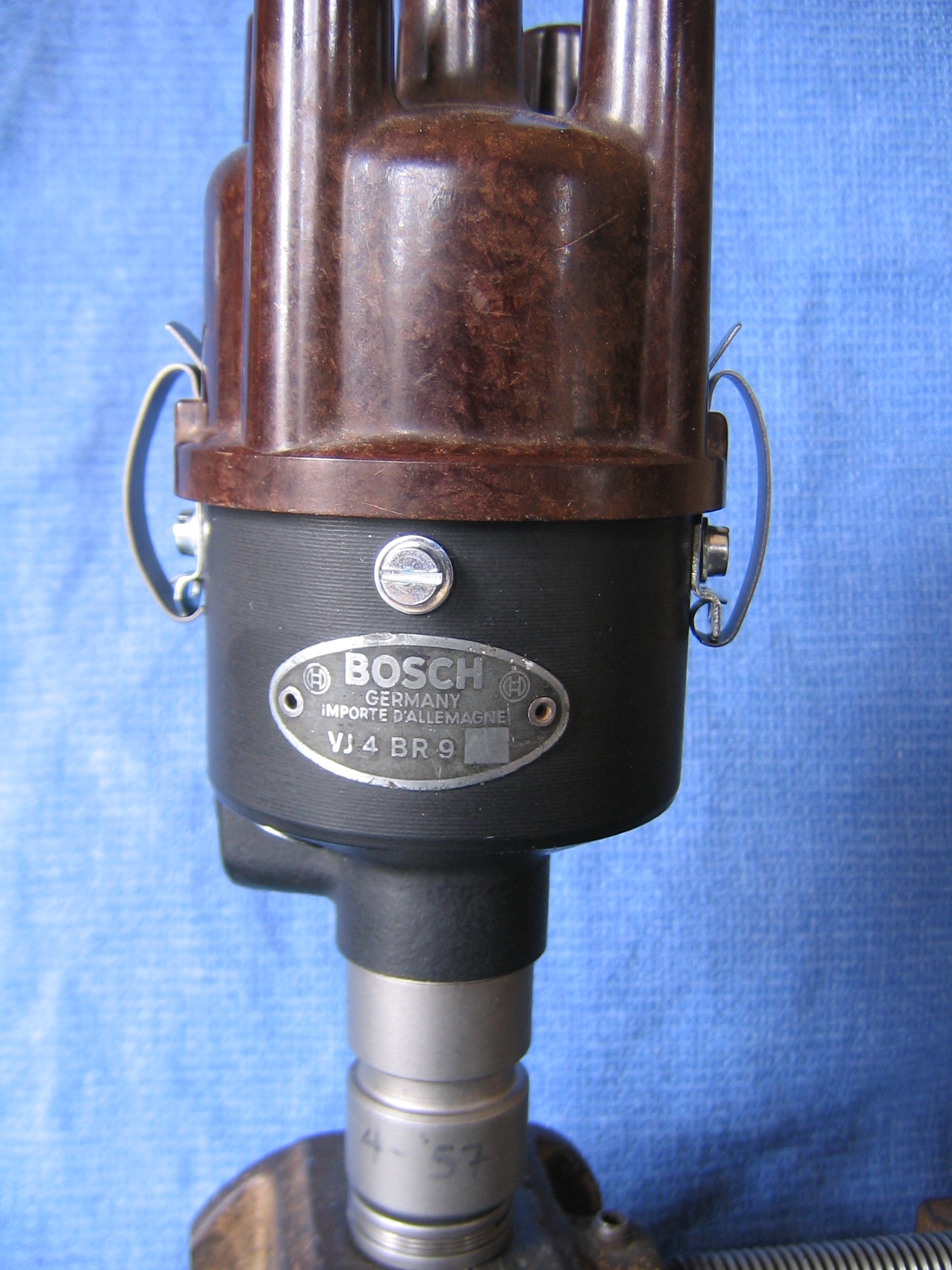

BOSCH Distributor VJ 4 BR 9

The VJ 4 BR 9 was developed as a replacement for the BRS 383 specifically for Porsche beginning with 356-A production in late 1955 and continued in use through 1957 when it was replaced by the later BR 18. The BR 9 maintains essentially the same advance curve as the 383, and like its predecessor, is strictly mechanical advance yielding approximately 15 degrees total advance at 1500 rpm as measured at the distributor, 30 degrees at 3000 rpm at the crankshaft.

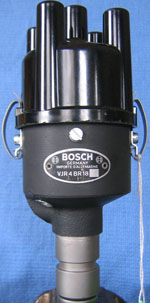

4 BR 18 Distributor

BOSCH Distributor VJ/VJR 4 BR 18

The VJ/VJR 4 BR 18 is the mechanical advance distributor put in the Porsche 356A models beginning in late 1957 and continuing in use through 356B and early 356C and SC models into November 1963.  The unit provided a total of approximately 15 degrees advance at 1500 rpm as measured at the distributor, 30 degrees at 3000 rpm at the crankshaft.

VJU 4 BR 2 Distributor

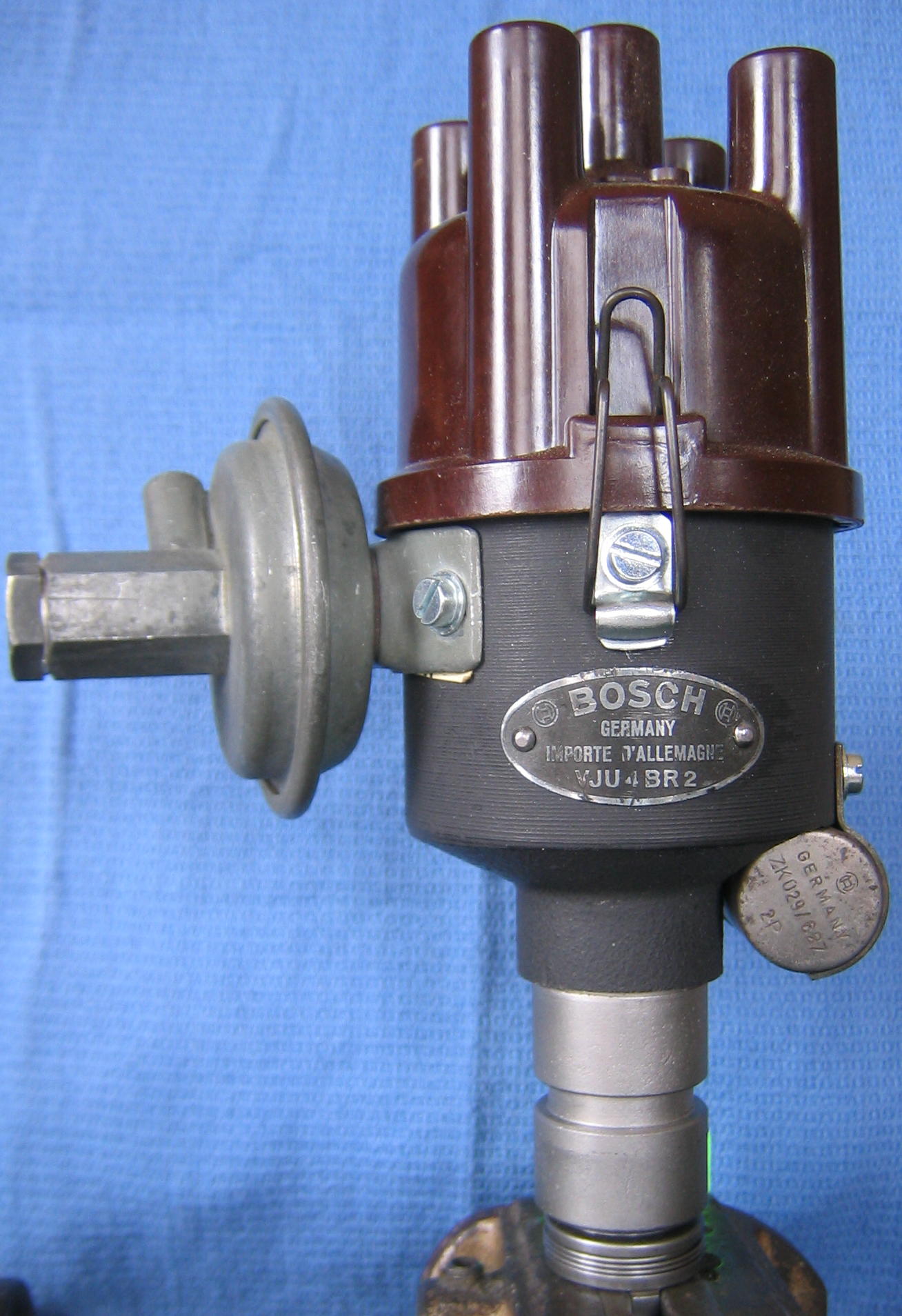

BOSCH Distributor VJU 4 BR 2

The VJU 4 BR 2 was the first dual advance (vacuum and mechanical) distributor to be used on the VW beetle. It was put on the first 1192cc engines produced from December 21, 1953 beginning with chassis No. 1-0 575 415. It was used for less than two months ending sometime in January 1954 (chassis number unknown) when it was replaced by the VJU 4 BR 3 T. The unit provides approximately 12 degrees total advance through the combined mechanical and vacuum circuits at 1500 rpm as measured at the distributor, 24 degrees at 3000 rpm at the crankshaft. (A bus equivalent, the VJ 4 BR 2 was introduced the same date on transporters beginning with chassis 20-069 409 and similarly used only for little more than a month when it was replaced by the VJ 4 BR 3 T. The latter was likewise replaced in August 1954 ending with chassis 20-095 421 with introduction of the revised 36hp engine).

VJU 4 BR3

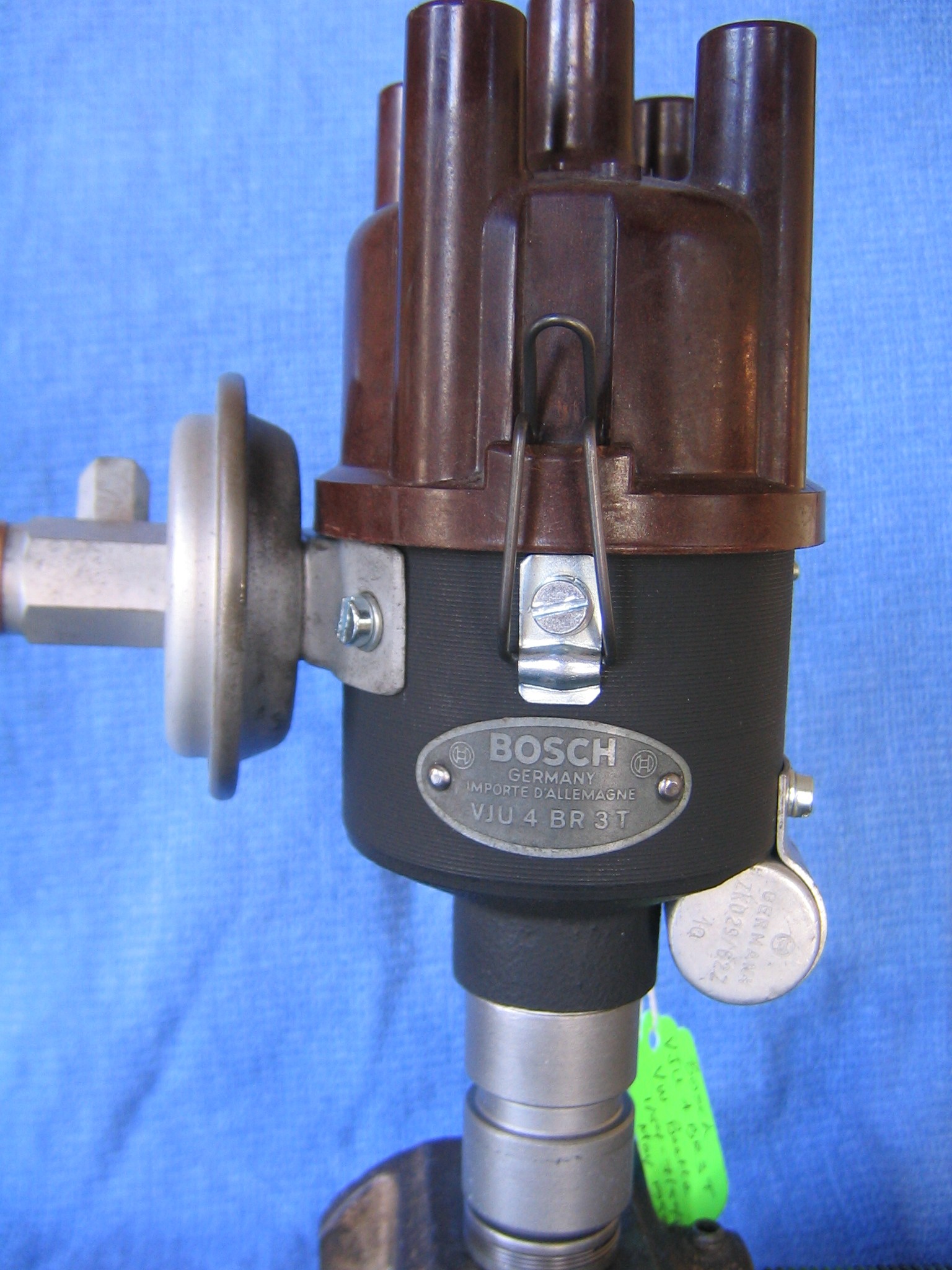

BOSCH Distributor VJU 4 BR 3 T

The VJU 4 BR 3, another dual advance distributor, replaced the VJU 4 BR 2 on VW beetle production sometime in January 1954 (chassis number unknown).  Its service too was shortlived continuing in use only through mid August 1954 ending with chassis No. 1-0 702 741 when the 1192cc engine compression was increased from 6.1:1 to 6.6:1 and the VJU 4 BR 8 was introduced.  Both the BR 2 and the BR 3 produced a greater amount of engine noise which may be the reason they were each successively replaced by later designs. The BR 3 relies on both mechanical and vacuum circuits to deliver a total advance of approximately 12 degrees at 1600 rpm as measured at the distributor, 24 degrees at 3200 rpm at the crankshaft.

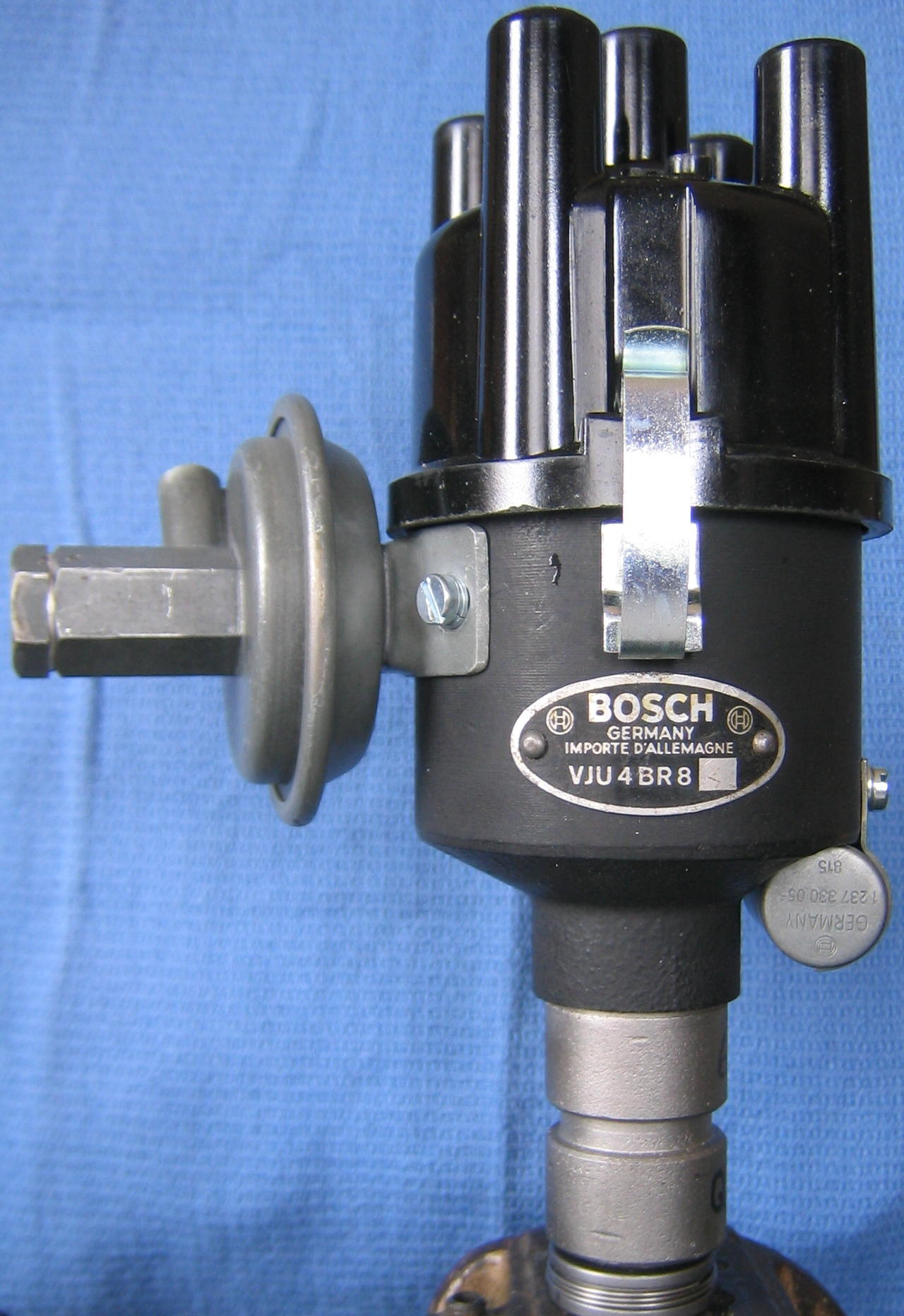

VJU 4 BR 8

BOSCH Distributor VJU 4 BR 8

With revisions to the 1192cc beetle engine in July 1954, VW introduced the Bosch VJU 4 BR 8 distributor which is the one commonly associated with the 36hp powered beetles beginning with chassis No. 1-0 702 742 and continuing through the end of the decade.  This distributor replaced the earlier BR 2 and BR 3 units also utilizing dual advance (mechanical and vacuum) to achieve the desired performance curve but with less total advance and with slightly different static timing than its predecessors.  The BR 8 provides approximately 8.5 degrees total advance at 1600 rpm as measured at the distributor, 17 degrees at 3200 rpm at the crankshaft.

For more information or to place an order, please contact us either via email to VINTAGE WERKS or you may call us at 801-355-0266.

We look forward to serving you!

>
